These record-breaking performances were representative of the innovations occurring at the time, with new steam turbine engines and sophisticated navigational equipment that included marine clocks with cylindrical hairsprings. These marine timekeepers enabled navigators to master nautical navigation and helped them to achieve these outstanding speeds.

To celebrate the Maison’s 110th anniversary, Montblanc has chosen to honour travel across the Atlantic Ocean and the ultimate precision of marine chronometers, both essential parts of this pioneering spirit, with two unique horological creations: a limited edition of eight Montblanc Collection Villeret Tourbillon Cylindrique Pocket Watches 110 Years Edition and a one-of-a-kind Villeret Tourbillon Cylindrique Pocket Watch & Navigator 110 Years Edition. Like the revolutionary marine chronometers that guided navigators across the ocean over a century ago, these highly collectible Montblanc limited edition timekeepers push the boundaries of fine watchmaking by combining ultimate performance with artisanal aesthetic. They represent the highest level of traditional craftsmanship with hand-engraving, hand-painting and Grand Feu enamelling.

Montblanc continues with these exceptional creations to celebrate innovation and tradition in the true spirit of the Maison’s 158 years of fine watchmaking heritage.

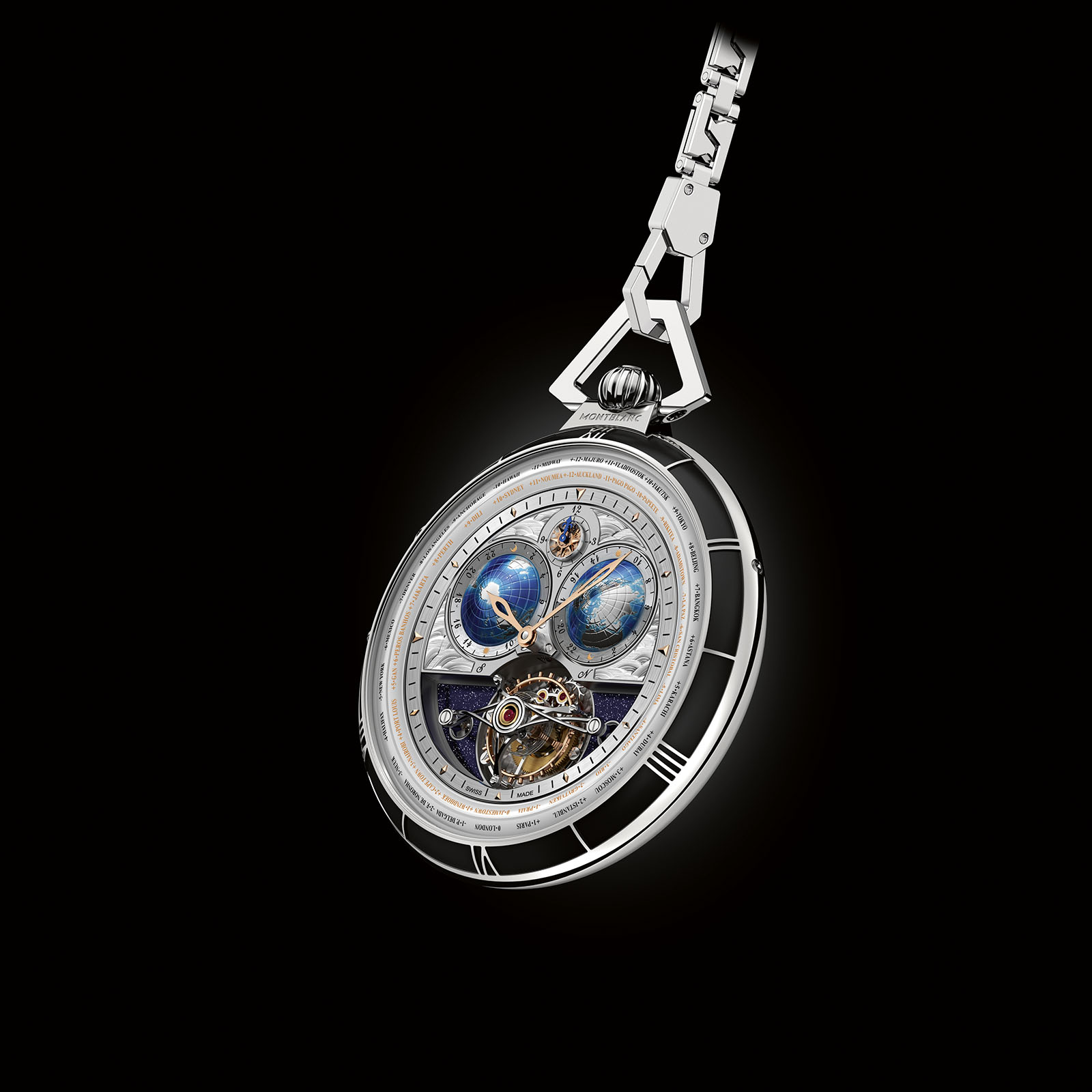

Montblanc Collection Villeret Tourbillon Cylindrique Pocket Watch 110 Years Edition – 8 pieces

Montblanc presents a limited edition of eight pocket watches that follow the pioneering spirit of the ships crossing the Atlantic and their precision marine chronometers, capturing the essence of travel, both past and present. The choice of eight pieces is in reference to the year the Montblanc Manufacture in Villeret, the former Minerva Manufacture, was founded back in 1858.

The Montblanc Collection Villeret Tourbillon Cylindrique Pocket Watch 110 Years Edition – 8 pieces features some of horology’s most innovative complications, including a tourbillon with cylindrical hairspring, a triple time zone indication, and a worldtime with both the Northern and Southern Hemispheres.

The Tourbillon with Cylindrical Hairspring

For over a century, marine chronometers with cylindrical hairsprings have been highly regarded by navigators for their incredible precision and reliability, even in the most violent of storms. Although far more complicated to produce, their accuracy over long periods of time became an essential element of navigation and survival at sea, allowing mariners to determine their exact longitude at any given time.

Today, cylindrical hairsprings continue to embody ultimate precision. Like a conventional balance spring, a cylindrical balance spring is a concentrically wound elastic metal wire. However, instead of being wound around itself, at increasing distances from a common centre and all on the same plane, its individual turns are of equal diameter and are wound above each other. This eliminates the slight eccentricity of the centre of gravity.

The challenge for Montblanc’s watchmakers in the fabrication of this balance spring was to miniaturise the cylindrical hairspring, which was obviously much larger and higher in traditional marine chronometers. However, thanks to the expertise of the Montblanc Manufacture in Villeret, its specialists were not only able to fabricate a miniature cylindrical balance spring, but they found solutions to include two Phillips terminal curves as well. These upward curves at each end of the spring significantly improve the regularity of the balance spring’s breathing, thus further improving isochronism and resulting in utmost precision.

Few manufactures nowadays have the know-how and skill to fabricate their own balance wheels and hairsprings like Montblanc. It is thanks to the Maison’s 158 years of fine watchmaking expertise that it was even possible to develop such a technical cylindrical hairspring for the Montblanc Collection Villeret Tourbillon Cylindrique Pocket Watch 110 Years Edition – 8 pieces.

The Triple Time Zone Indication

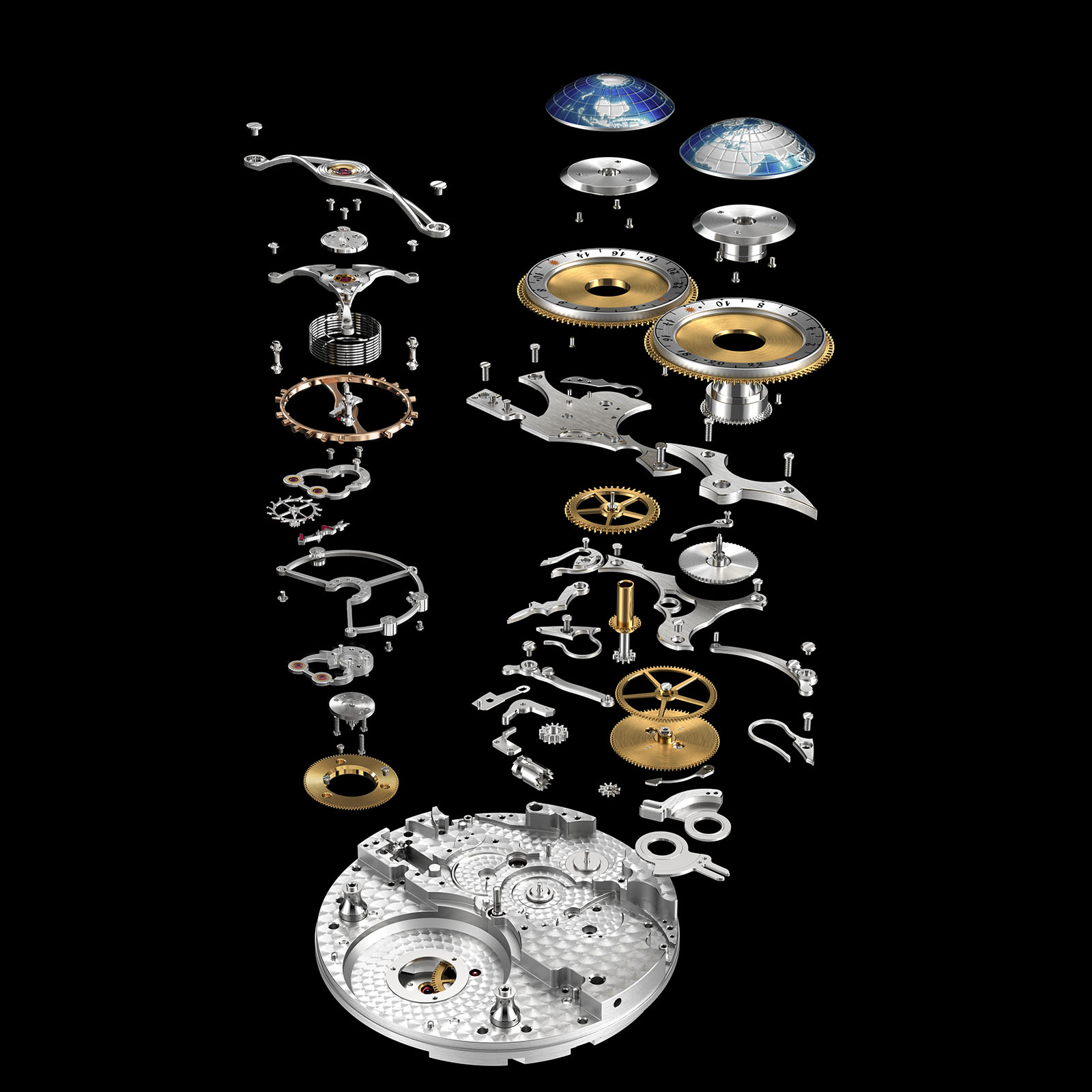

The hand-wound one-minute tourbillon calibre MB M68.40 — with its 281 components (91 components for the Cylindrical Tourbillon and 77 for the Worldtime complication) and 48-hour power reserve — features a number of unprecedented functions, including a triple time zone indication. Local time is represented by two 18K red gold hands in the centre and the home time is indicated by a Fleur-de-Lys hand that sweeps around a three- dimensional 12-hour compass rose at 12 o’clock. For the worldtime, a pair of three- dimensional globes depict the 24 time zones in the Northern and Southern Hemispheres, along with the passage of the days and nights. The 24-hour worldtime and day/night indicators make a full rotation in 24 hours around the fixed globes. The disc for the Northern Hemisphere turns clockwise, where its counterpart in the Southern Hemisphere turns anticlockwise. This configuration allows an instant view of the day and night on both sides of the world. With the aid of the meridians of longitude, the user can also read the current hour in any desired part of the world by following the 24-hour worldtime display on the two discs.

Operating the Pocket Watch

The indicators on the Montblanc Collection Villeret Tourbillon Cylindrique Pocket Watch 110 Years Edition – 8 pieces can be set via the crown and the two inset correctors on the case’s flank at 2 and 10 o’clock. After pulling the crown outwards, the owner can set the local time and simultaneously adjust the worldtime display along the two globes’ 24-hour scales. The corresponding correctors on the case are used for the fine adjustment of the local time in the centre and the home time in the compass rose at 12 o’clock, which runs along with the local time. Once all indicators have been correctly synchronised, a new local time in a different time zone can be set simply by pressing the inset corrector at 2 o’clock. Operating this corrector advances only the hour hand in single-hour increments. It does not affect the minutes, which are shown from the dial’s centre, nor does it alter the home time at 12 o’clock or the two displays along the globes. When travelling, the user then only has to press on the inset corrector at 2 o’clock until the new local time zone is reached, without affecting the other indications. This simple correction enables the user to read the local time in the centre, the home time in the compass at 12 o’clock, and the time anywhere else in the world by simply glancing at the two 24-hour discs around the hemispheres.

The Aesthetics of the Dial

The large sophisticated three-dimensional dial, constructed in different parts and on different levels, features a number of traditional artisanal decorations. Starting with the tourbillon at 6 o’clock, this intricate high complication draws the eye into the timepiece, thanks to its three-dimensional arcing, convex tourbillon bridges, which are slightly curved to match the contours of the globes. It takes more than two weeks just to hand- bevel and polish the top stainless steel bridge, an art that only a few watchmakers still carry out by hand in this artisanal way today.

A slice of aventurine provides a dramatic backdrop to the tourbillon, accentuating its presence even further. And the details do not stop there, as behind the tourbillon cage,

Montblanc has chosen to decorate the main plate with a traditional circular graining pattern, a rare know-how, which is still done by hand in the Montblanc Manufacture in Villeret using traditional methods.

The two hemispheres are also of particular interest, as they have been crafted using a combination of engraving and miniature painting that shows the continents in relief with their outlines, borders, longitude and latitude lines, seas and oceans. The names of the 24 cities in both the Northern and Southern Hemispheres are indicated in a domed flange encircling the dial, along with a precise minute track embellished with red gold-plated applied indexes, lozenges and triangles. Other noteworthy features include a three- dimensional 12-hour compass rose, made out of four 18K red gold hand-bevelled parts that indicate the home time with a blued Fleur de Lys hand, and 18K red gold hour and minute hands that indicate the local time, all while flying above this spectacular scene.

Since the very beginnings of fine watchmaking, engraving has held an important role in horological aesthetics with hand-engravings on the movement, cases and even on the dials, as seen on the dial of the Montblanc Collection Villeret Tourbillon Cylindrique Pocket Watch 110 Years Edition – 8 pieces. This decorative work requires a clear artistic and aesthetic approach, combined with exceptional dexterity and know-how.

With extraordinary virtuosity, the hand-engraver delicately carves a miniature sculpture out of the 18K white gold dial by incising the metal to create elegant and unique wave patterns that depict the rolling waves of the Atlantic Ocean, bringing depth and refinement to the dial.

The Movement

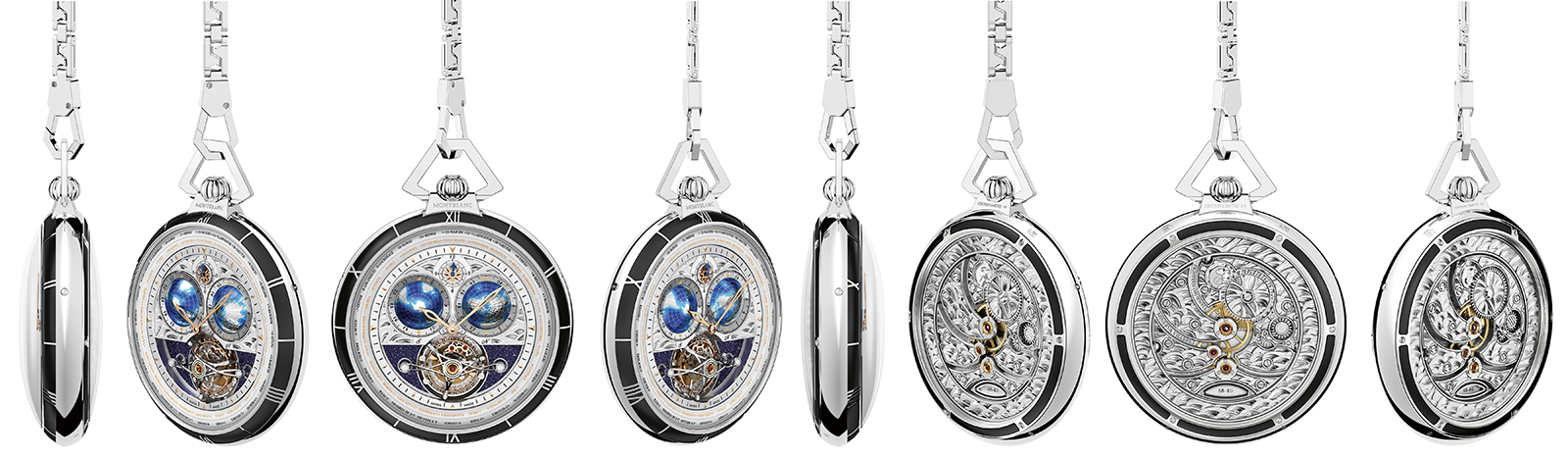

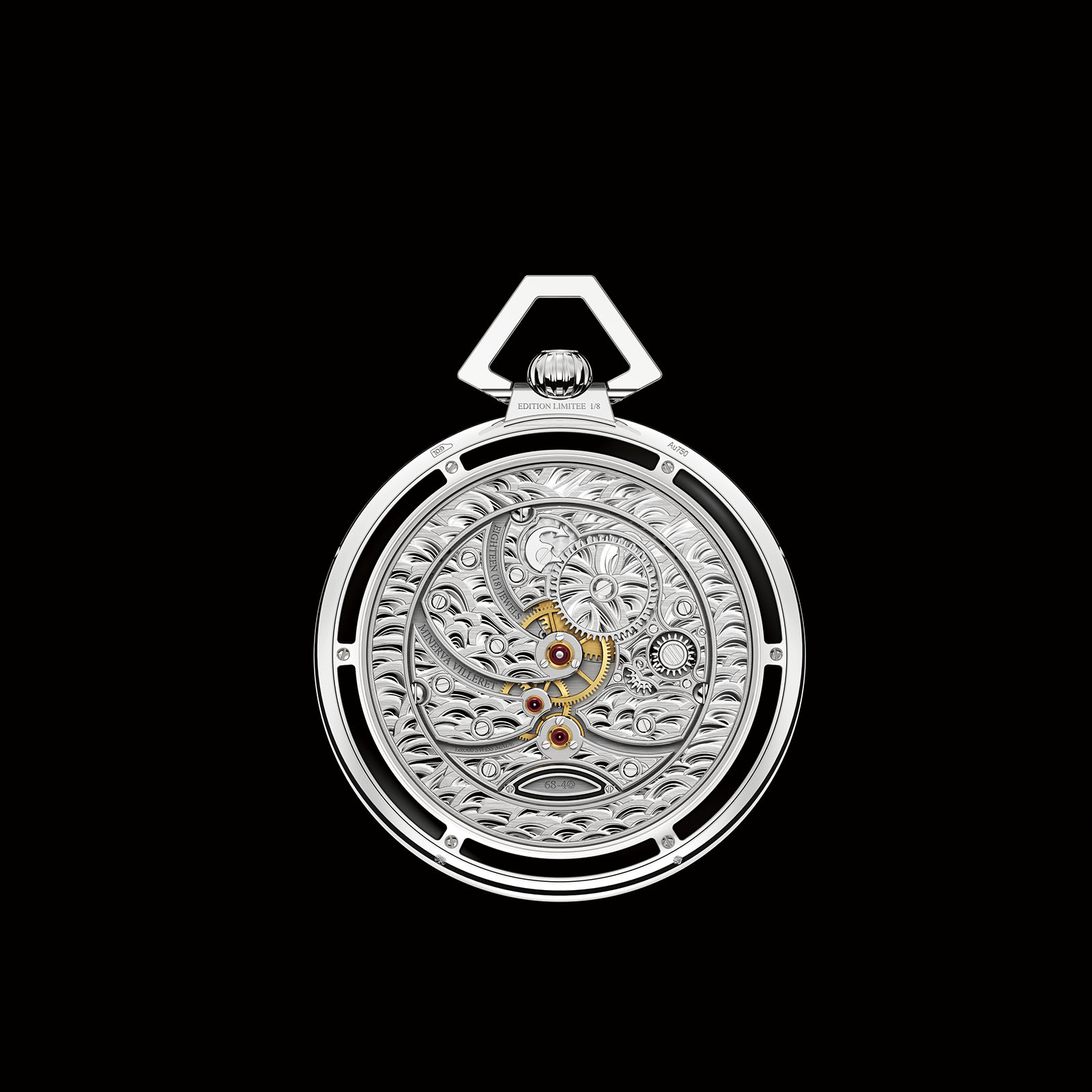

The engraver’s art continues onto the back of the hand-wound movement calibre MB M68.40, which is on full view through a large case back. The same artisanal hand- engraving expertise is applied to the hand-crafted bridges that have also been decorated with this unique wave pattern. The waves adorning the lower part of the movement are relatively calm, but they get increasingly choppy towards the top of the calibre, paying homage to the pioneering spirit of the steam ships that crossed the dangerous Atlantic Ocean at the beginning of the 20th century. The hand-wound movement is further decorated with a horizontal satin-finished main plate, traditional bridges featuring the pomme shape, inner angles, exquisite bevelling, a seal with the hand-engraved calibre number decorated with black enamel, and a mirror-polished pawl with the hand-finished Minerva arrow—all pushing the limits of traditional horological aesthetics.

Case Finishings

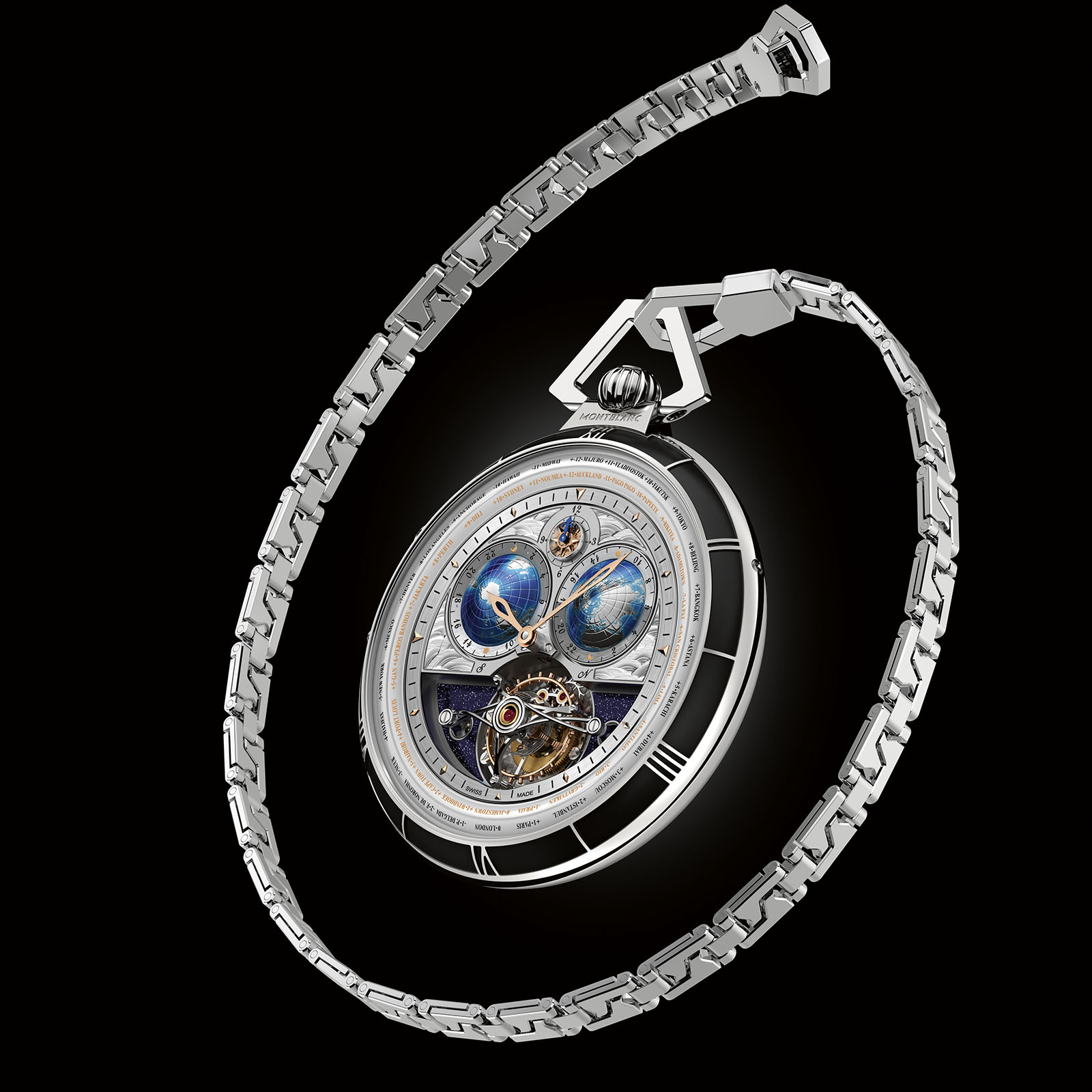

The 60 mm polished white gold case is also a work of art with its pebble shape that is reminiscent of the refined watches of the early 19th century. A five-sided shackle matches the design of the attachment of the 18K white gold chain and each link of the chain features the “M” of Montblanc in an elegant design of aesthetic refinement. On the case, black Grand Feu enamel highlights the Roman numerals for maximum legibility, while another black Grand Feu enamel adorns the case back. The art of enamelling in watchmaking dates back to the 17th century and was historically used at the Minerva Manufacture for the dials of its stopwatches and chronographs. The use of enamel preserves this rare craft that requires the mastery of highly developed artistic talents and technical skills. Completing the case is a traditional fluted crown with a Montblanc emblem in relief at 12 o’clock and the limited edition number hand-engraved just below the shackle on the case back, as a reference to this highly exclusive limited edition.

Montblanc Collection Villeret Tourbillon Cylindrique Pocket Watch & Navigator 110 Years Edition – Unique Piece

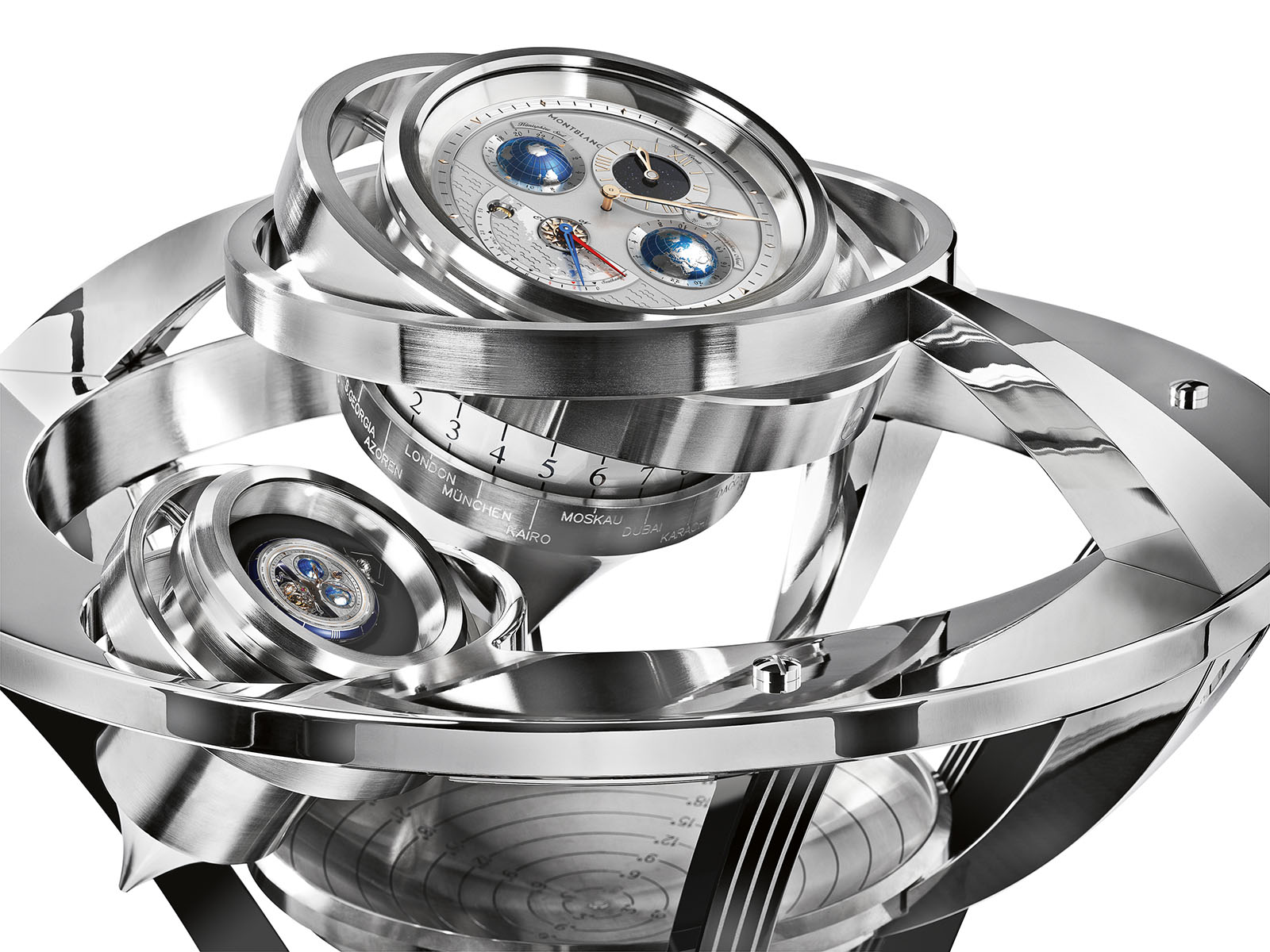

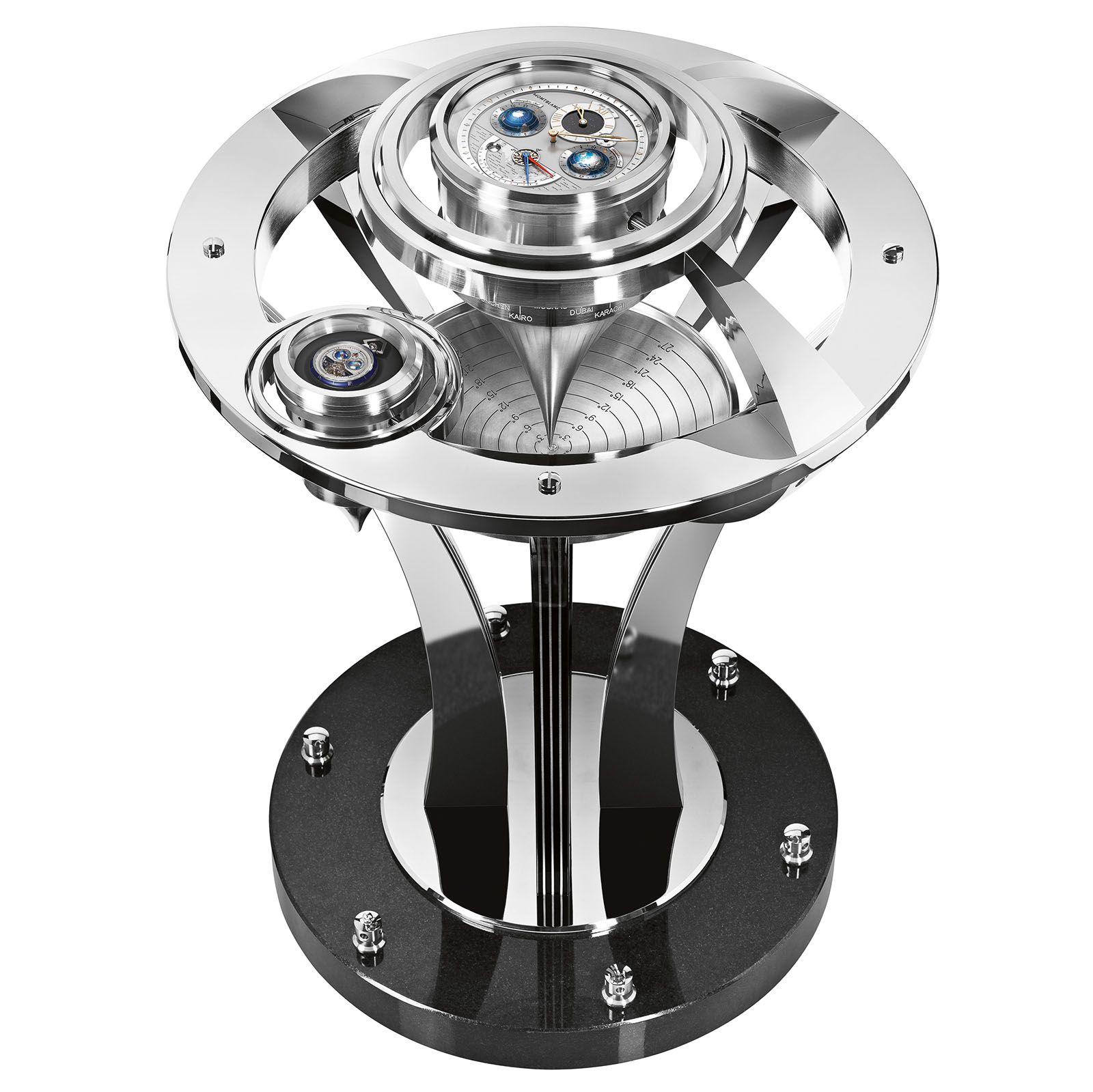

The one-of-a-kind Montblanc Collection Villeret Tourbillon Cylindrique Pocket Watch & Navigator 110 Years Edition combines a nautical clock with a pocket watch that can be placed in a dedicated compartment for display and safekeeping when not in use. The navigator structure measures 93 cm in height and is composed of a heavy 56 cm granite base for stable installation on the deck of a ship, while the case is made of nickel-plated brass and has a diameter of 64 cm. Weighing an impressive 120 kg, the navigator is designed to stand firm whether it is placed on the motionless floor of a library or on the pitching and rolling planks of the ship. The nautical precision clock keeps its balance with a cardanic suspension system that sits inside a nickel-plated brass cage. Even when the ship rolls to one side, the clock remains perfectly horizontal and runs precisely, thanks to a case mounted with eight ball bearings, indicating the ship’s heeling with a downward pointing arrow on a scale from 0 to 27 degrees, the perfect symbiosis of aesthetic form and nautical function.

The Montblanc Collection Villeret Tourbillon Cylindrique Navigator was developed in collaboration with the renowned Erwin Sattler clock manufacture, who made the base of the Navigator. It was completely reworked by the Montblanc Manufacture with respect to the movement, complications and finishings. The nautical clock itself has a diameter of 15 cm and a height of 9.5 cm and is equipped with a hand-wound movement that indicates the hours, minutes, seconds, time in 24 different time zones, and a 15-day power reserve.

The Worldtime with Northern and Southern Hemispheres

The worldtime function captures the continuous essence of travelling and navigation with each of the 24 time zones. Two subdials on the dial, one at 3 o’clock for the Northern Hemisphere and one at 9 o’clock for the Southern Hemisphere, provide a worldtime indication with 24 cities encircling the dial, as well as a day/night display. This intricate system works using two fixed discs for the 24 hours and rotating globes. In addition to the aforementioned displays, a worldtime clock below the cardanic suspension, and which is only visible from the side of the case, indicates the 24 time zones and two dozen cities that turn accordingly.

The Patented Emergency Power Reserve and Day Countdown Indication

An in-house patented emergency power reserve and remaining days’ indicator, comprised of 19 components, can be viewed via red and blue hands in a graduated counter at the bottom of the dial. This display is indispensible for a nautical clock, as reliable navigation can only be assured if the nautical clock is regularly wound and never stops running throughout a voyage. If the power reserve is between 15 and four remaining days, the two hands are on top of each other and show the remaining days left for the power reserve. If the power reserve drops below four days, the red hand moves into a red zone, indicating that the mainspring needs more energy and the navigator should be manually wound via its key at 7 o’clock. The blue hand also indicates the remaining number of days at sea. The patent of this unique power reserve was developed by Montblanc for one of its Collection Villeret wristwatches, the Chronograph Regulateur Nautique, and has been converted into the movement of the nautical clock.

To ensure 15 days of power reserve Montblanc chose a large barrel with a lengthy mainspring and a fusée transmission system, which transfers a constant supply of energy to the first wheel in the gear train via a cable wrapped around a conically-shaped fusée. As the power in the barrel wanes, the tapering radius of the fusée continually modifies the active leverage so an unchanging force can be conveyed to the gear train despite the steadily decreasing torque in the mainspring. The transmission of energy is regulated via a Swiss lever escapement and a screw balance with a blued hairspring oscillating at 2.5 hertz.

Golden Gears

A closer look inside the movement reveals gleaming golden gears, which have been laboriously crafted in several stages. Each and every tooth is individually milled from solid brass and then de-burred, angled, burnished, plated in gold and highly polished to reduce friction and protect the wheels from corrosion.

The Navigator Dial

On the dial of the navigator, fine watchmaking codes celebrate the heritage and precision of the time-honoured marine chronometers. The local time hours are indicated on a subdial at 12 o’clock decorated with a slice of black aventurine, the minutes are shown using a central red gold-plated hand pointing to a precise minute track that runs around the outside of the dial, and the small seconds tick in a small subdial at 1 o’clock. Tracking day and night in the Northern and Southern Hemispheres is simple via the two three- dimensional globes featuring engraved continents and blue lacquered oceans. Other details include a 18K red gold-plated compass rose with quarter indications, the aforementioned patented emergency power reserve in days with graduation around the counter, and the departure city of Southampton and the arrival city of New York indicated on the dial, all on a backdrop of a silvery-white dial with an elegant combination of grained, sunray, polishing and wave finishings.

Operating the Navigator Clock

To wind the navigator, the owner must first remove the bezel by turning it anticlockwise until it resists a little and then it can be lifted off. Using the large key provided, the clock can be carefully wound anticlockwise until the power reserve indicator displays the full 15 days.

To adjust the clock, the hour hand of the regulator dial (located at 12 o'clock) can be set to the local time by turning the minutes hand forwards or backwards with a gentle motion of the finger until the correct time is displayed. The worldtime ring on the cylindrical part of the case and the globes on dial will follow suit.

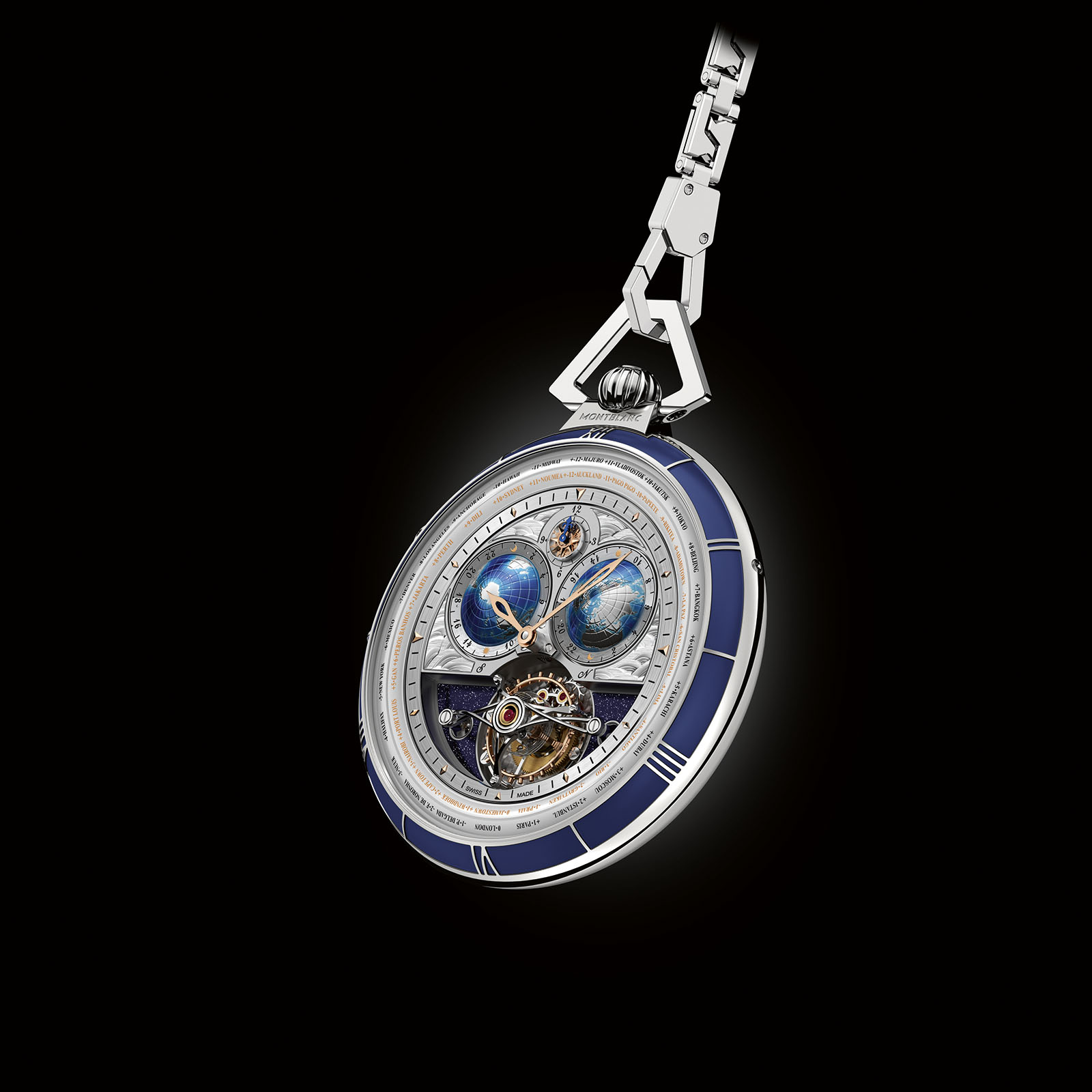

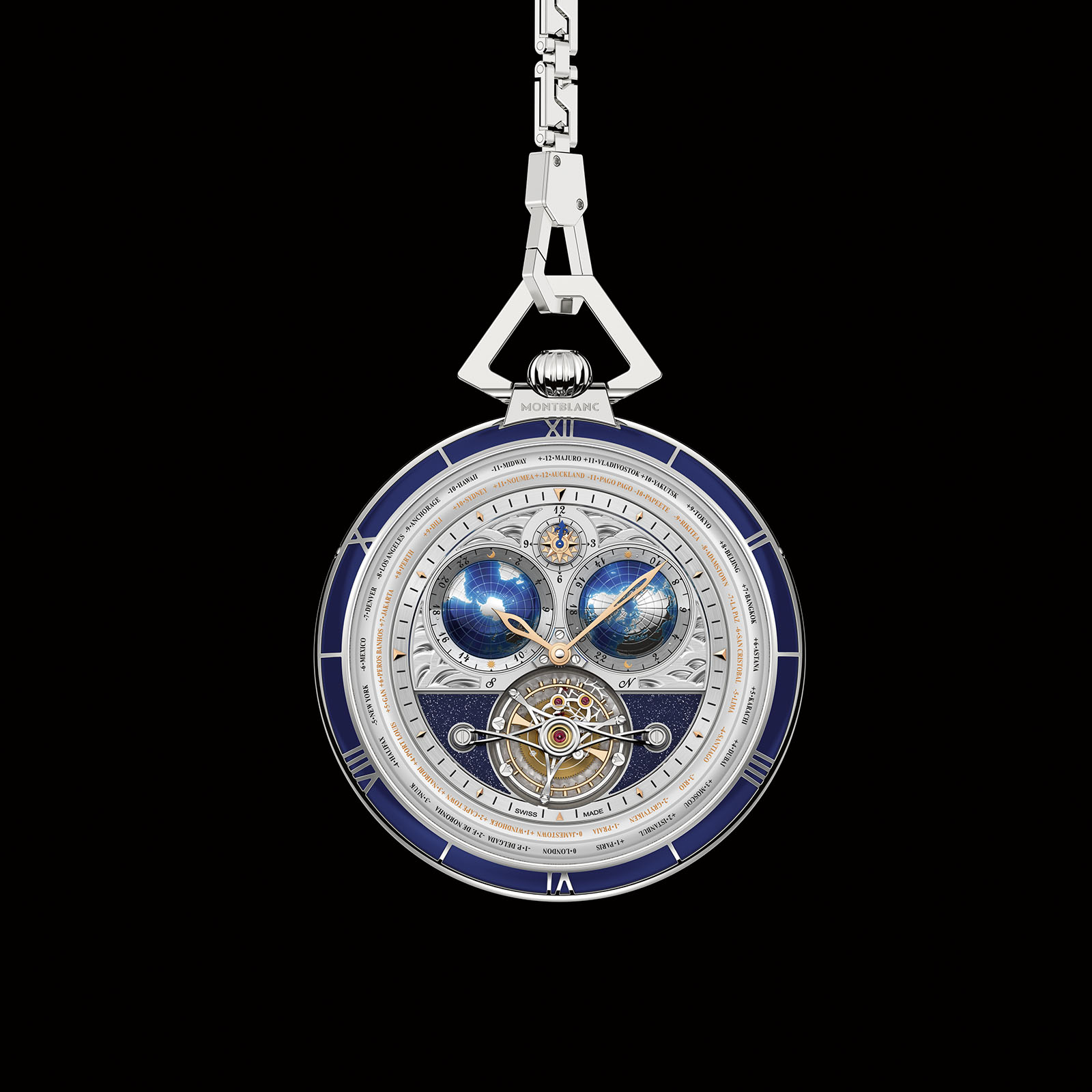

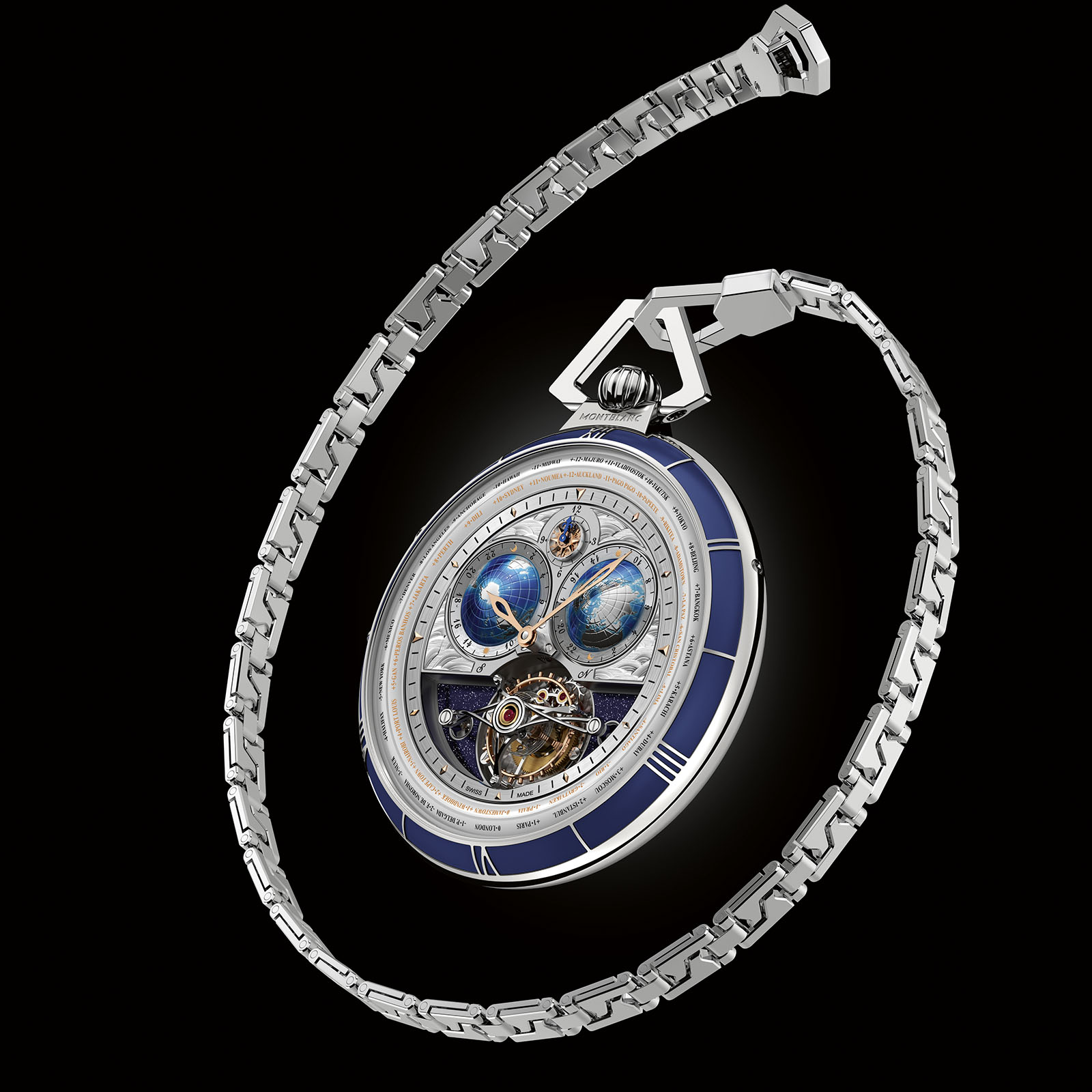

The Montblanc Collection Villeret Tourbillon Cylindrique Pocket Watch 110 Years Edition – Unique Piece

In addition to the nautical clock in its pivoting support, another cardanic suspension case has been fitted into the structure to house the Montblanc Collection Villeret Tourbillon Cylindrique Pocket Watch 110 Years Edition – Unique Piece, which can be protected from the rolling waves when its owner isn’t carrying it. This unique pocket watch is adorned with blue Grand Feu enamel, on both the front and back of the case, reminiscent of the deep blue Atlantic Ocean. Together they form a unique work of precision and art — strictly limited to one piece — that can be illuminated with blue LED lights on demand, bathing the navigator and pocket watch in a shimmering light and adding to the performance of this unique piece.
